Cabinet & PDU

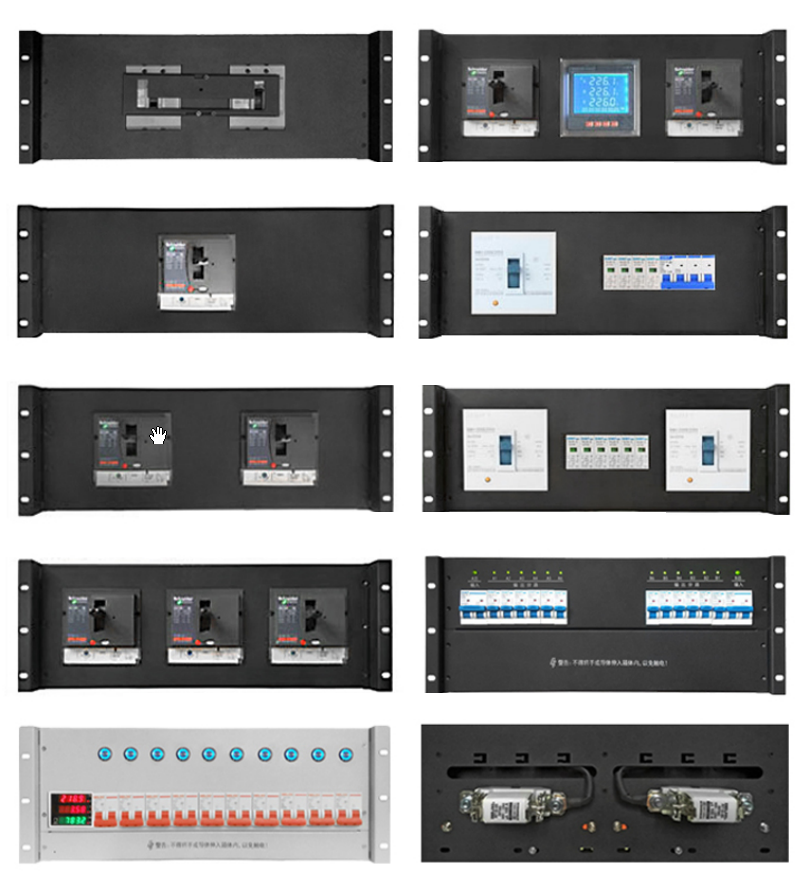

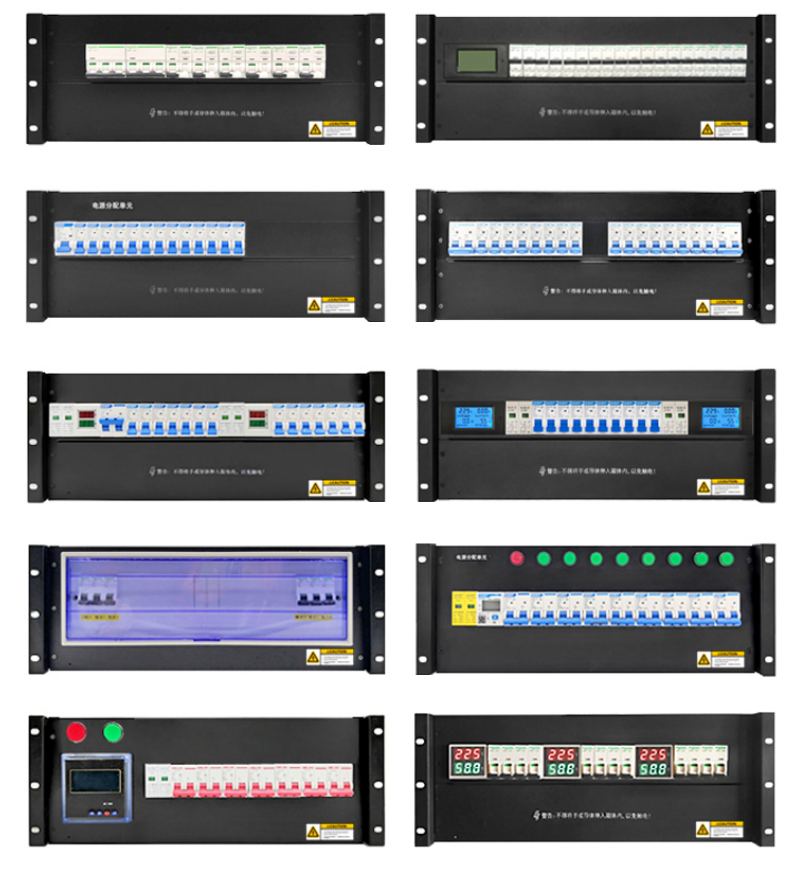

Power Distribution Unit
1. High safety coefficient, cost savings
The PDU manages the power supply with overload protection and multiple circuit protection functions, which can prevent overloading, high temperatures, lightning strikes, and power surges, maximizing the safety coefficient of the product. In addition, this product can help users achieve unmanned operation, save labor costs, and effectively reduce management and maintenance costs, with high cost performance.
2. Real-time power monitoring, automatic alarm protection
The PDU can monitor real-time power parameters such as voltage, current, active power, reactive power, and frequency. This facilitates users to grasp and manage various power equipment. When a system failure occurs or the total load current exceeds the system set value, it will automatically alarm via SMS, email, and phone calls.
3. Supports remote control, convenient management
The PDU can be connected to a local area network or the Internet. Users can remotely control the PDU via a computer and query, connect, disconnect, or restart the power supply of each device at the downstream ports, completely breaking the constraints of distance and location.
4. Flexible strategy management
Based on the usage of various power equipment, users can customize configuration strategies. Based on the user’s strategy management and monitoring events, this product supports centralized management and automatic periodic control, managing several devices simultaneously in one interface, setting the power switch cycle independently, and making alarms to users via SMS, email, etc.
5. Energy consumption measurement, energy consumption evaluation
The PDU can manage the electricity consumption of power equipment, calculate power factor, and evaluate the energy consumption of power equipment. If the power factor is low, there is a significant loss during power transmission, and the electricity consumption suddenly increases. The PDU can adjust the power supply status of the equipment through setting and send alerts to users via SMS, email, etc.

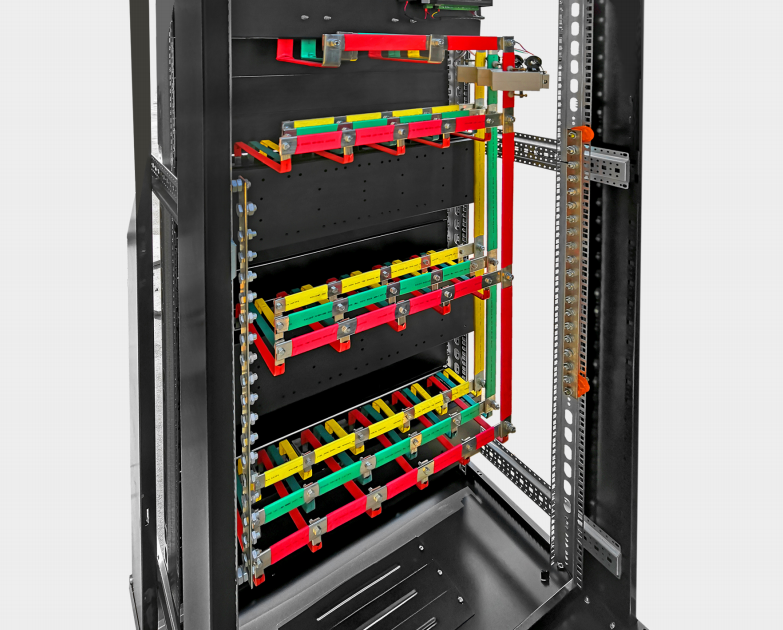

ATS Dual-power Array Cabinet
The Precision ATS Dual Power Distribution Unit is an intelligent power distribution cabinet specifically designed for the energy end of data center computer rooms. It comprehensively collects all energy data and provides high-precision measurement data for the terminal energy monitoring system. Through the display unit, it can real-time reflect the power quality data and upload it to the background environmental control system via digital communication (RS485).
It can monitor and analyze the power quality, conduct statistics and analysis of power consumption, issue alarms and manage events, etc., in order to achieve real-time monitoring of the entire distribution system and effective management of its operational quality. It helps users optimize the network data center, enhance energy consumption management, and improve the operational efficiency of server racks.
It is mainly applied to important customers such as railway telecommunications, finance, government, medical T and other data centers or industrial enterprises, providing power distribution, circuit protection, metering, management and computer grounding services for important equipment such as network servers.
The entire power distribution system adopts a modular structure design. Combined with a wide range of optional accessories, it can be customized to meet the specific needs of the data center, providing customers with personalized high-reliability power distribution products.

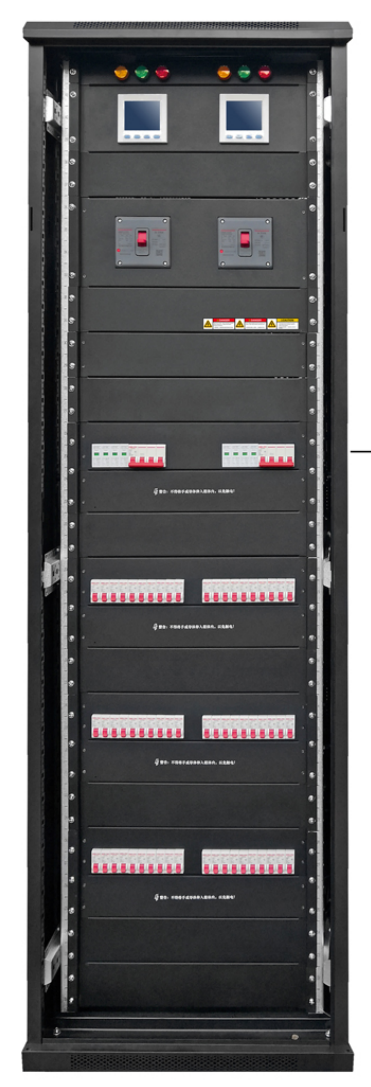

Intelligent Array Cabinet
Alert the users in advance, informing them that there may be various abnormal conditions such as overvoltage, undervoltage, overload, etc. in the power supply system of the computer room. This will enable users to detect potential safety hazards as early as possible and take corresponding measures to avoid risks.
It can be designed with dual input and output, and the system can be maintained without power interruption.
It can be equipped with hot-swappable and adjustable phase-switching functions. The system can perform switch replacement without power interruption, and the load’s three-phase balance can be adjusted without the need to replace any wiring cables.
The output switch can be equipped with plug-and-play terminals. These terminals are installed at the output terminal area on the back of the distribution cabinet, making it convenient for wiring. When the output branch needs maintenance, it can be quickly switched to the backup output terminals.
The intelligent monitoring module can be replaced online. Under the condition of uninterrupted power supply of the system, faults of the monitoring module can be diagnosed and replaced, making the maintenance simple and convenient.
